My Drone Story

manyimages
Timeline
2020 ===> 2022 ===> 2024
manyimages6

Gallery

images
manyimages

Videos

manyimages

My FPV path...

manyimages

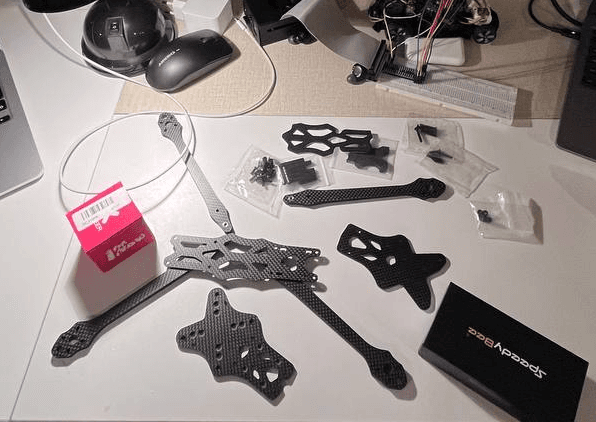

1. Putting together the frame and the motors can be a pain, because of the heat reducing objectives as well as your planned drone configuration. Therefore, choosing the right frame is crucial.

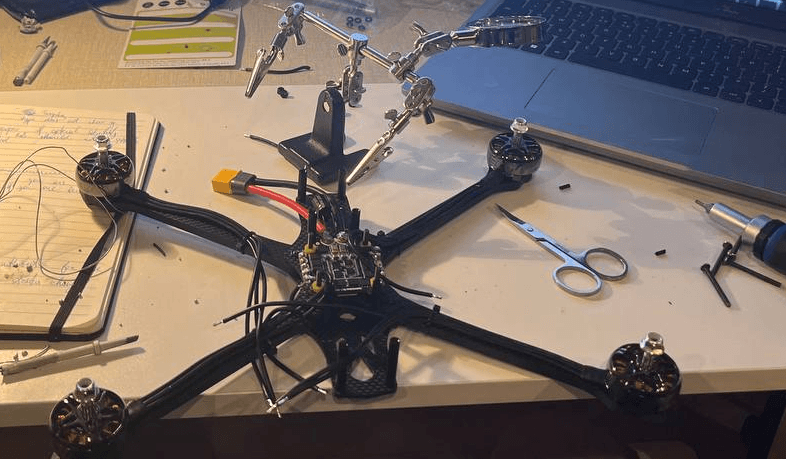

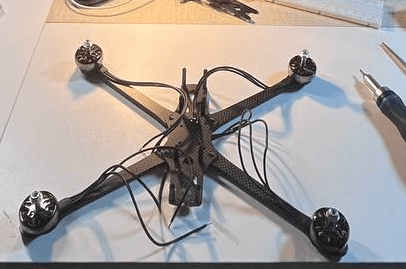

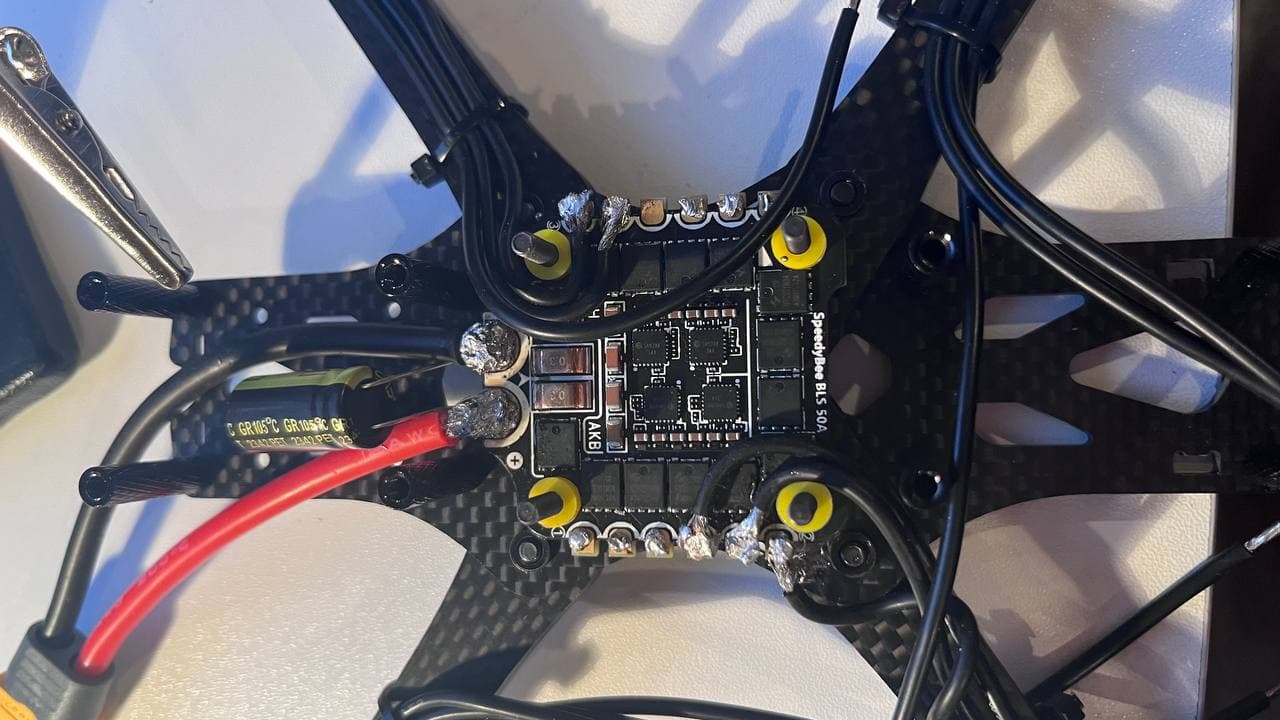

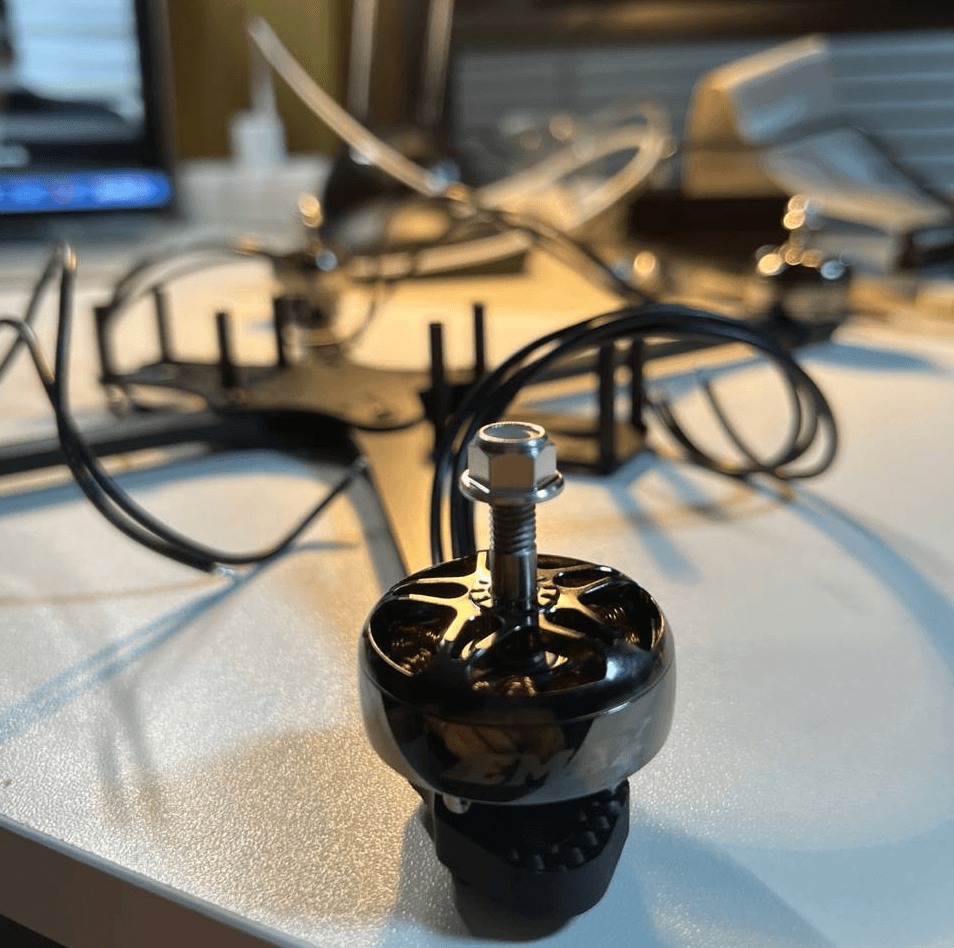

2. Attaching the motors and tightening the screws turned out more physical than I thought. Starting at the soldering part and all the way to installing the propellers. Do not neglect the recommended tools.

manyimages
manyimagesmanyimages
manyimagesmanyimages

Drone Parts

Title
Price
Link
ESC
71 Euro
Link
Props
11 Euro
Link
Elrs 2,4 ghz nano expresslrs
12 Euro
Link
Radio master Tasche Fernbedienung fpv
65 Euro
Link
Foxeer Reaper Extreme 7
65 Euro
Link
High Gain Antenne
12 Euro
Link
RC 7 Zoll 315mm Kohle faser Quadcopter Rahmen
19 Euro
Link
EMAX ECOII
92 Euro
Link
Foxeer cat 3 micro mini fpv kamera
48 Euro
Link
Tattu Modellbau-Akkupack (LiPo) 14.8 V 3700 mAh
60 Euro
Link
Basetech ZD-99 Lötstation analog 58 W +150 - +450 °C
30 Euro
Link
Magnifying Glass - Helping-hand
10 Euro
Link
Solder
8 Euro
Link
Tinner
14 Euro
Link
Replacement Soldering Tip Set
7 Euro
Link
12,6 V 10a Lithium-Batterie
18 Euro
Link
Number of items: 16
Total price: 542 Euro

Drone Laws

The laws have changed a lot in the past years:

  • Insurance - 10 cents/day or 39,96 per year
  • You need an EU Drone Certificate before flying a drone. The EU Drone Licence has two certificates: the basic certificate and the supplementary certificate. A1-A3 is the basic certificate. If you want to fly a drone in Germany, you need to obtain this certificate from250 grams.
  • Drones may not fly above 100 meters (328 feet) without a permit. In controlled airspace, the maximum altitude allowed is 50 meters (164 feet). Drone pilots must maintain a direct line of sight with their drones at all times.
  • All drones weighing 250 grams (.55 pounds) or more must be labeled with a fireproof badge containing the name and address of the drone owner/operator.
  • Drones may not be flown within 1.5 kilometers (.93 miles) or closer to an airport. Can not be flown over crowds, industrial areas, disaster areas, prisons, residential areas, certain traffic routes, and several other areas designated as sensitive. Not allowed above and at a lateral distance of 100 meters from federal highways, federal waterways, and railway facilities.

Thank you for listening!
